The TLR 80.10 Trafag is a radar probe used for non-contact liquid level measurement in tanks. The device operates by emitting microwave signals that reflect off the liquid surface and return to the probe. The distance is determined based on the signal's return time, allowing for an accurate level determination. Because the measurement is performed without contact with the liquid, the probe is ideal for use in demanding industrial environments.
The TLR 80.10 radar probe is also used in the water and wastewater sector, where it often measures the level of wastewater—one of the most demanding media. Aggressive environments negatively impact the durability of traditional level sensors, making the non-contact measurement offered by the TLR 80.10 radar an exceptionally advantageous solution.
The TLR radar has a range of 0...10 m and a 10 m cable.
Special promotion!

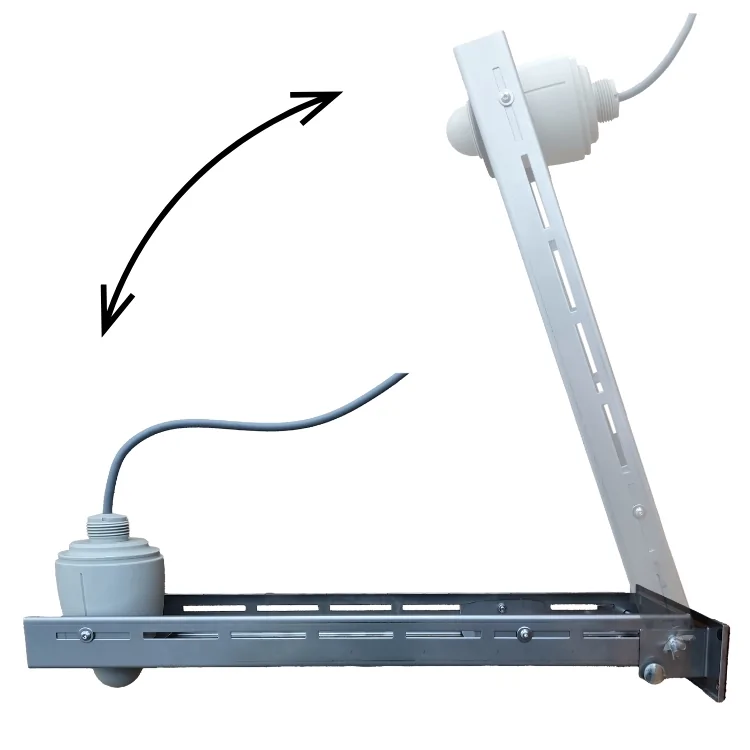

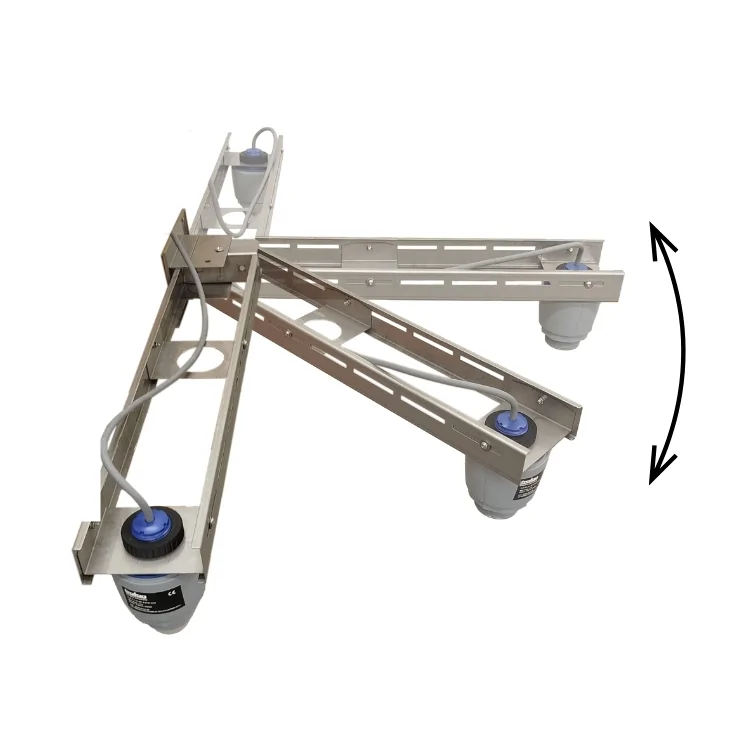

When you purchase the TLR 80.10 radar level probe, the mounting bracket is available at a promotional price of 1 PLN net!
• Measurement range: 0–10 m
• Cable length: 10 m
• Accuracy: ±2 mm
• Easy configuration via mobile app
• Polypropylene housing
• Mounting connector: G1 1/2
• Interfaces: 4–20 mA, Modbus, Bluetooth, 2+2 wires
• Protection class: IP67
• Operating temperature range: -20°C to +60°C
• Compact design
